9 time World Rally Champion and X-Games Rallycross gold medalist Sebastien Loeb made history last month by demolishing the record for the Pikes Peak International Hill Climb in Colorado. He piloted the purpose built Peugeot 208 T16 whose construction began in January of 2013. Luckily the engineers at Peugeot were able to raid the parts bin from their recently retired 908 diesel hybrid Le Mans race car. The front torsion spring suspension, engine air intake and rear wing are parts directly from the 908. The 3.2 liter, twin turbo, 60 degree V6 was also developed for competition at Le Mans in the Pescarolo-run C60. The engine makes 875 horsepower giving the 875 kg (1929 pounds) car an impressive power to weight ratio. Peugeot considered adapting the diesel hybrid drivetrain from the 908, but there simply wasn’t enough time to make it work. Time was also the main consideration for the decision to go with a tubular steel chassis instead of a modified unibody or carbon tub. Downforce produced by the 208 T16 is on par with a Le Mans prototype car which gives full utilization to the 2014 Le Mans spec Michelin tires and 18×13 wheels.
Loeb and Peugeot’s performance are really going to shake things up for Pikes Peak in years to come. To put things in perspective, Rhys Millen was able to beat his course record from last year by a full 44 seconds and was still 49 seconds behind Sebastien Loeb who posted an 8:13.878. Success breeds success so Peugeot may still unleash the technologies that they didn’t have time for this year. I’m sure they’d love to return to the glory of their back-to-back victories in 1988 and 1989 using what they had learned from the Group-B rally era. There’s some talk of them being the first to break into the 7-minute range next year. Until then, enjoy Red Bull’s on-board footage of this year’s run which was the first ever time posted in the 8-minute range:
Sources: June 2013 issue of Racecar Engineering, Autoblog and Red Bull on YouTube

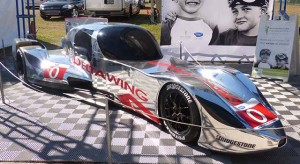

Nissan announced at this year’s 24 Hours of Le Mans that they will be returning to the Garage 56 technological exhibition spot for 2014. Nissan was occupied the 2012 Garage 56 slot when they supplied the engine for the Deltawing project. This year was supposed to see the running of the GreeGT H2 hydrogen fuel cell car, but they weren’t able to complete the car in time and withdrew. 2014 will see the return of the Deltawing concept in the form of the ZEOD RC fully electric race car. The name stands for Zero Emissions On Demand – Race Car. The ZEOD RC is based off of a coupe version of the Deltawing developed before the entire program was absorbed by Nissan. The coupe should actually make a big improvement to the original Deltawing’s already exceptional aerodynamics.

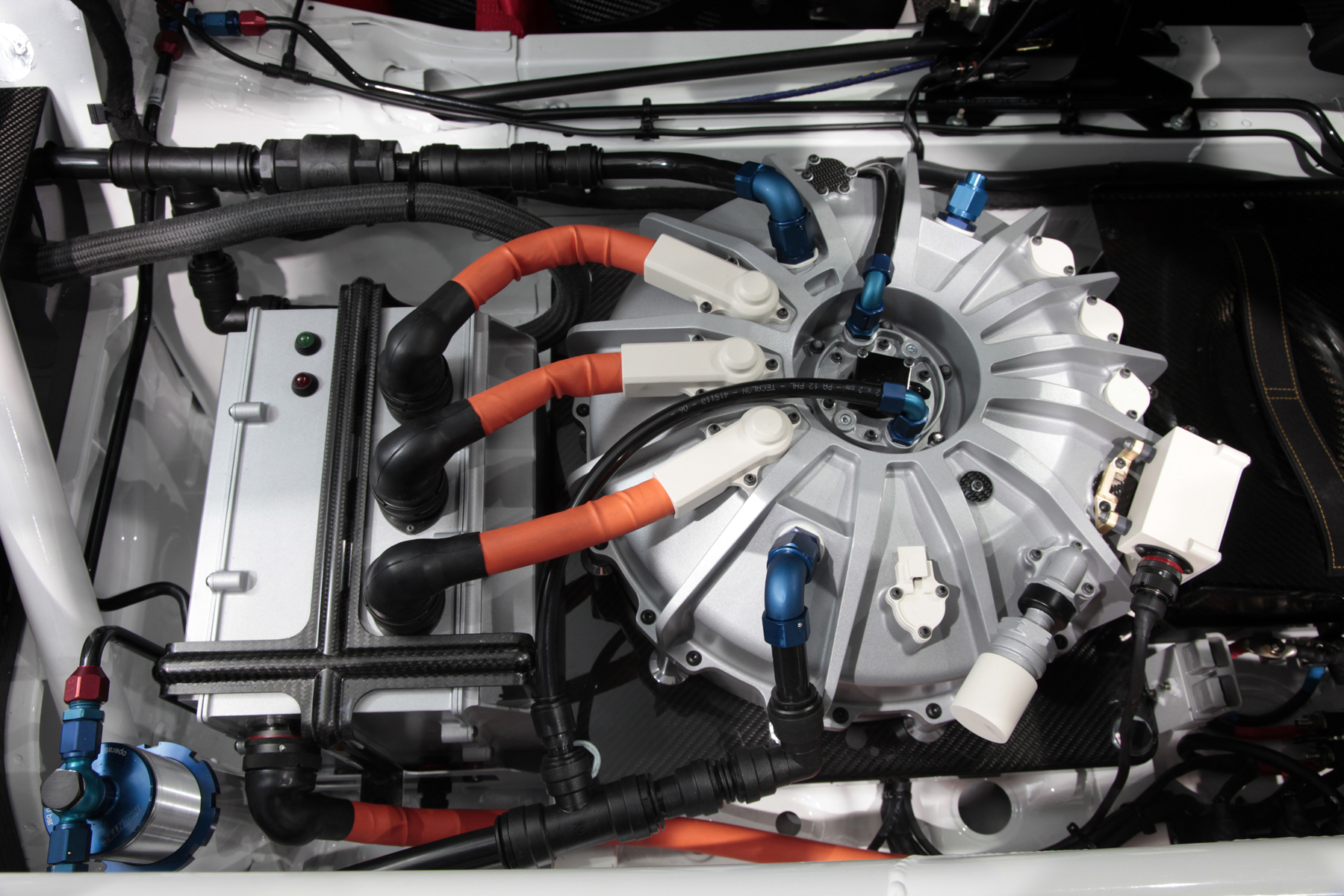

Going endurance racing with a pure electric car is a pretty bold move on Nissan’s part. As with all electric cars, they’re going to face a huge challenge with storing enough energy with batteries. If I had to guess, I’d say they will go with a two-stage energy storage system. Electric drive in race conditions is very different from what most of us will see in street cars. Racing requires battery killing rapid discharges of power but also provides great opportunities for high torque regenerative braking. This constant cycle of extreme charging and discharging is the reason that the successful endurance racing hybrids from Audi, Toyota and Porsche use alternative quick discharge energy storage devices. Toyota uses an ultra-capacitor and the Audi and Porsche use a vacuum enclosed 40,000 rpm electromagnetic flywheel developed by Williams F1. Even though these devices are capable of reliable extreme charge and discharge rates, they hold a limited amount of total energy. I think the ZEOD RC will combine the current hybrid race car quick discharge tech with a bank of traditional batteries, most likely made with a similar chemistry to those used on street cars. These batteries have the highest energy density but don’t like charging and discharging at racing rates.

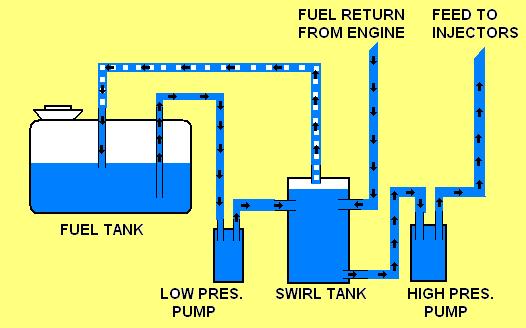

The two energy storage systems will work in tandem almost identically to how surge tanks/swirl pots work in a liquid fuel system. A swirl pot is a small intermediate fuel container added to cars that see a lot of lateral G-loading. Since its usually close to full, the fuel inside won’t slosh around during cornering and starve the high pressure fuel pump that feeds the engine. To keep the swirl pot topped off, it is fed with a low pressure pump from the main fuel tank which can now be made nice and roomy with plenty of fuel slosh since it no longer feeds the engine directly.
If you substitute electrical energy for the fuel in the swirl pot diagram, you can use the same energy pathways for what I think the ZEOD RC’s two-stage energy storage system will look like. The quick discharge portion is like the swirl pot in that it will be responsible for juggling the energy directly to and from the traction motor that drives the wheels and does the regenerative braking. Like the swirl pot, the quick discharge system can’t hold enough energy by itself. It will have to be replenished from the primary battery. Since the quick discharge system acts like a buffer for the power demands from the motor, the battery can discharge at a slower rate over a longer period of time just like how it only takes a low pressure pump to fill the swirl pot from the fuel tank in the diagram. Having the battery and quick discharge system working in tandem allows for the best of both worlds in terms of having a large amount of on-board energy while also being able to track the highly dynamic energy requirements of racing.
It was a great choice on Nissan’s part to adapt the Deltawing design to campaign an electric endurance racing car. Before the ZEOD RC, Nissan built a JGTC inspired, carbon fiber monocoque, mid-motor, rear wheel drive Nismo LEAF RC. Though interesting, the LEAF RC was more of a showcase of the potential of the LEAF motor and batteries. The body shape is still an adaptation of a street car and would not come close to the Deltawing’s aerodynamic efficiency. The original concept for the Deltawing was to have a car that could maintain expected race pace while using half the tires and fuel. Engineering the solution was extremely difficult, but the math is simple. Half the aerodynamic drag and half the weight of a regular car led to half the consumption. That brings us to the dilemma that all EV builders face: How much battery should they add to the ZEOD RC? There’s a break-even point where the weight of additional batteries adversely affects every aspect of dynamic performance. This effect is amplified in cars whose performance is based on lightweight agility, like the Deltawing. Given the current state of battery technology, Nissan is only going to be able to realistically add 2 or 3 laps of Le Mans worth of energy to the ZEOD RC before compromising the design concept. That’s OK, though. Quick recharging and/or battery pack swapping is a hurdle that will have to be tackled for electric car racing to be practical. Tesla has gotten their Model S pack swap down to around 90 seconds at their Supercharger Charging Stations. Surely Nissan can come up with something at least that good for Le Mans next year.
This is the raw on-board footage of Allan Simonsen piloting the Maranello Motorsports Ferrari 458 Italia for an illegally fast qualifying lap for the Liqui-Moly 12 Hours of Bathurst endurance race. The teams were not allowed to qualify faster than a 2:06 and this lap clocked in at 2:05.49 with traffic. Maranello was assigned 50 kg of penalty weight and the time from this lap was thrown out. Though this seems kind of harsh, the speed of the cars is limited to keep competition fair and development costs down for the good of the entire racing series. Watch the video to see a beautiful performance through one of my favorite tracks in the world:
Road & Track sent American F1 hopeful Alexander Rossi around the Circuit of the Americas in a Corvette ZR-1. I find it easier to get a feel for the track from the perspective of a street car instead of watching it in fast-forward from an F1 car. In a recent interview with Cycle World Magazine, MotoGP rider Ben Spies gave some of his insights on the track. He said that the uphill hairpin Turn 1 is great for spectators but really dangerous for the racers because if somebody messes up, they take out a lot of people. He then said the fast esses, Turns 3-6, are the hardest part of the track with the triple right, Turns 16-18, being the easiest since you can treat them all as one constant turn. Spies says the track is awesome but he wishes there was a high-speed fourth gear turn in it somewhere. The footage of Rossi starts with an easy out-lap and then two hot laps from different camera angles.
